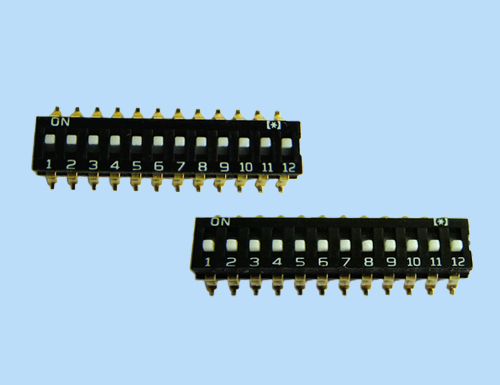

HAD-12H(L)W-R

1. MATERIALS

COVER: Engineering Plastics, Black

BASE: Engineering Plastics, Black

KEY: Engineering Plastics, White or orang

TMERMINAL: Alloy Coper, Plating Gold or Ag

2. ELECTRICAL CHARACTERISTICS

CONTACT RESISTANCE(INITIAL):≤50mΩ

AFTER LIFE TEST):≤100mΩ

CONTACT RATING(CONTACT RATING):25mA   24VDC

CONTACT RATING(NON-CONTACT RATING):100mA

INSULATION RESISTANCE:≥100MΩ.Min.at 500VDC

DIELECTRIC STRENGTH:500VAC Min. for 60 seconds.1mA

CAPACITANCE BETWEEN ADJACENT SWITCHES:≤5PF

3. MECHANICAL

OPERATION FORCE:≤8N

MECHANICAL LIFE:2000 operations

OPERATING TEMPERATURE:-20℃~+70℃

STORAGE TEMPERATURE:-40℃~+85℃

SOLDERABILITY:After flux 230±5℃for 5±0.5seconds,95%coverage

RESISTANCE TO SOLDERING HEAT:260±5℃for 5±1seconds

4. SOLDERING AND CLEANING PROCESSES

Keep all switch contacts in their“OFF”position for all operations

WAVE SOLDERING: Recommended solder temperatureat 500℃max.5 seconds

HAND SOLDERING: Use a soldering iron of 30 Watts controlled at 350℃approximately 5 seconds.While

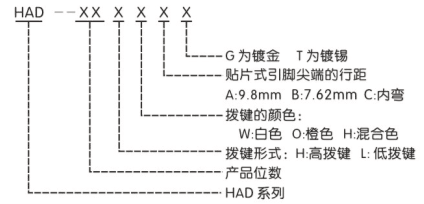

Product name:

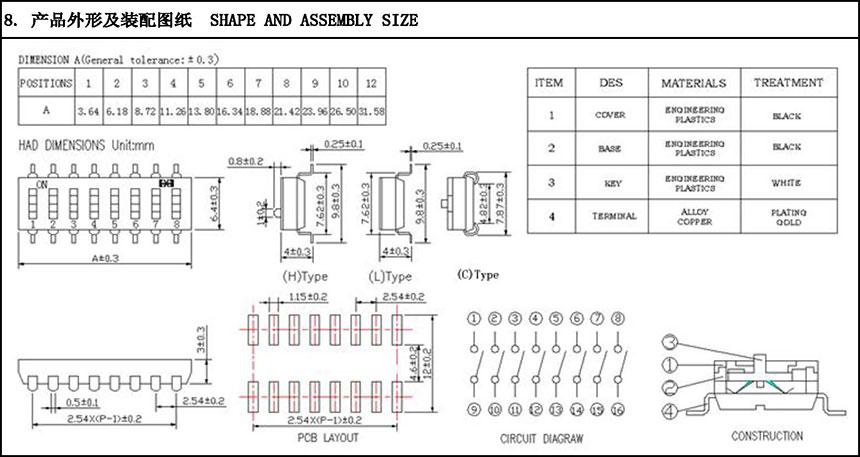

Product Drawing
