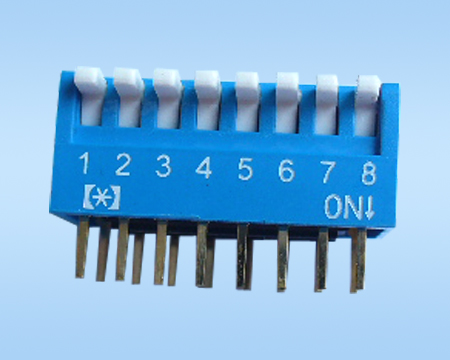

VPG/S-08L-R

Our products are widely applicable to the fields covering main board, telecommunication, broadcast television, automation equipment, software, interphone, lighting, relay, electric motor car with high performance.
1.ELECTRCAL SPECIFICATIONS
Contact rating (Switching):25 mA   24VDC
Contact rating (Non-switching:)100mA
Contact resistance (initial):50mΩ  Max.
Contact resistance(after life test):100mΩ  Max.
Insulation resistance:1000MΩ  Min. at 500VDC
Dielectric strength:500VDC Min. for 60 seconds. 1mA
Capacitance between adjacent switches 5PF Max
2.MECHANICAL SPECIFICATIONS
Operating Temperature:-25℃ to +70℃
Storage Temperature:-40℃ to +85℃
Operation force:8N Max.
Mechanical life:2000 operations
Humidity:95%RH,40℃ for 96Hrs.
Solderability:After flux 230±5℃for 5±0.5seconds,95%coverage
Resistance to soldering heat :260±5℃ for 5±1seconds
3.Cover: plastic (red/blue)
Base: plastic (black)
Pin: copper alloy
Actuator: nylon (beige)
4.Packaging: IC tube with all the pole in “OFF” position.

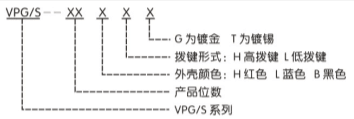

5.Product name:

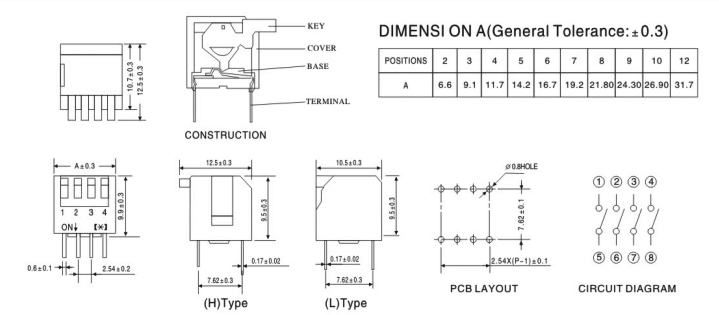

Product Drawing
